6000 Series Ball Bearings

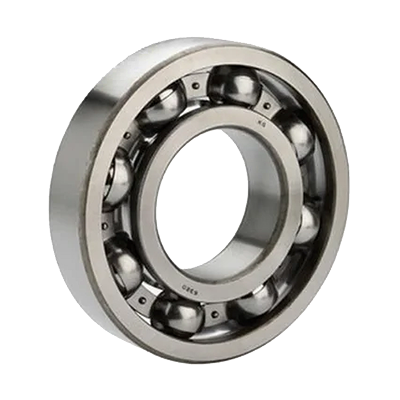

WM1® & WM3® 6000 Series Ball Bearings

Bowman’s WM1® and WM3® 6000 Series ball bearings deliver high-quality performance using durable 52100 chrome steel, with stainless steel options available on request. As an established 6000 series ball bearings manufacturer, Bowman provides reliable solutions for a wide range of industrial applications.

The WM1 6000 series bearing is manufactured to ABEC1 standards, while the WM3 6000 series bearing offers higher precision with an ABEC3 6000 series bearing rating. These extra light deep groove ball bearings are available with various seal configurations and can be customised to meet specific application requirements.

Designed for dependable operation and efficiency, Bowman’s 6000 Series range is suitable for applications requiring a reliable high speed ball bearing UK solution. The use of 52100 chrome steel ball bearings provides durability and performance, making them suitable for demanding applications including electric motors and industrial machinery.

For businesses seeking an electric motor ball bearing supplier, Bowman offers flexible bearing configurations and technical expertise to help select the appropriate solution for specific operating requirements.

Connect with Experts

Bearing Number	Nominal Dimensions			Basic load ratings		Limiting speeds
	d	D	B	Dynamic	Static	Grease	Oil
	(mm)			(N)		(RPM)
WM 6000	10	26	8	4620	1960	30000	32767
WM 6001	12	28	8	5070	2360	26000	32000
WM 6002	15	32	9	5590	2850	22000	28000
WM 6003	17	35	10	6050	3250	19000	24000
WM 6004	20	42	12	9360	5000	17000	20000
WM 6005	25	47	12	11200	6550	15000	18000
WM 6006	30	55	13	13300	8300	12000	15000
WM 6007	35	62	14	15900	10200	10000	13000
WM 6008	40	68	15	16800	11600	9500	12000
WM 6009	45	75	16	20800	14600	9000	11000
WM 6010	50	80	16	21600	16000	8500	10000
WM 6011	55	90	18	28100	21200	7500	9000
WM 6012	60	95	18	29600	23200	6700	8000
WM 6013	65	100	18	30700	25000	6300	7500
WM 6014	70	110	20	32767	31000	6000	7000
WM 6015	75	115	20	32767	32767	5600	6700
WM 6016	80	125	22	32767	32767	5300	6300
WM 6017	85	130	22	32767	32767	5000	6000
WM 6018	90	140	24	32767	32767	4800	5600
WM 6019	95	145	24	32767	32767	4500	5300
WM 6020	100	150	24	32767	32767	4300	5000

Frequently Asked Questions

If the answer to your question is not listed below, please feel free to give us a call directly on +44 (0)1235 462500 or email us at sales@bowman.co.uk.

What is a 6000 series ball bearing?

A 6000 series ball bearing is an extra light deep groove ball bearing designed for applications requiring a compact bearing with reliable radial and axial load performance. Bowman’s range uses high-quality 52100 chrome steel ball bearings and is available in different precision and sealing configurations.

What is the difference between WM1 and WM3 grades?

The WM1 6000 series bearing meets ABEC1 precision standards, while the WM3 6000 series bearing provides higher precision with an ABEC3 rating. The appropriate grade depends on the application's speed, tolerance, and performance requirements.

What sizes of 6000 series bearings are available?

Bowman offers a range of standard 6000 Series sizes. Availability depends on the specific bearing designation and configuration required. As a 6000 series ball bearings manufacturer, Bowman can also discuss custom modifications and configurations for specific applications.

Are stainless steel 6000 series bearings available?

Yes. While Bowman’s standard 6000 Series bearings are manufactured using 52100 chrome steel, stainless steel 6000 series bearings are available on request. Contact our team to discuss material, sealing, and application requirements.

How do I request a quote for 6000 series bearings?

Provide the required bearing designation, quantity, precision grade, seal configuration, material preference, and application details. Our team can then recommend the appropriate bearing and provide a quotation as an electric motor ball bearing supplier or for other industrial applications.
