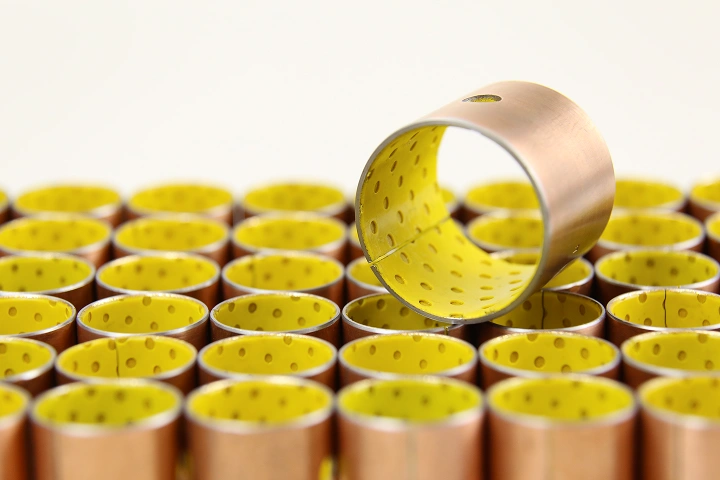

WMX® BEARINGS: EXCELLENT WEAR RESISTANCE AND SUPERIOR LOAD CAPACITY

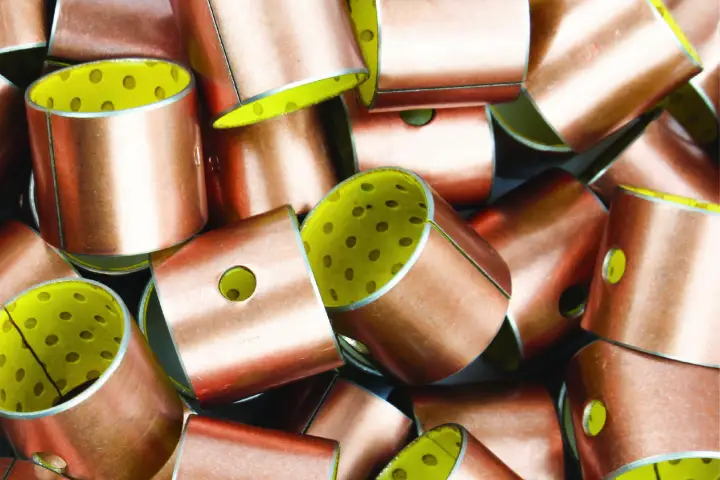

Bowman’s WMX® acetal lined bearings are high-performance acetal lined wrapped bearings engineered for demanding rotary and oscillating applications. Designed to provide excellent wear resistance, high load capacity, and extended re-lubrication intervals, these bearings deliver reliable, long-lasting performance where continuous lubrication is impractical or difficult to maintain.
Manufactured as robust steel backed acetal bearings, the WMX® range combines a strong steel backing with a premium acetal copolymer lining to achieve outstanding mechanical strength and low friction. These acetal copolymer plain bearings are ideal for applications requiring excellent durability, dimensional stability, and consistent performance under varying load conditions.
The advanced design of wrapped acetal bearings makes them particularly suitable for equipment operating under high loads with intermittent lubrication. As low wear acetal bearings, they minimize friction, reduce maintenance requirements, and extend equipment service life in demanding industrial environments. Their excellent performance in acetal bearings rotary oscillating applications makes them a preferred choice for automotive suspension systems, agricultural machinery, construction equipment, hydraulic systems, and general machine-building applications.
Available in a wide range of metric and imperial sizes, WMX® acetal lined bearings are supplied in standard configurations as well as custom-engineered solutions to meet specific application requirements. Bowman’s engineering expertise ensures every bearing delivers optimum performance, reliability, and long-term operational efficiency.
Whether you require standard acetal lined wrapped bearings or bespoke bearing solutions for acetal bearings rotary oscillating applications, Bowman provides premium-quality products backed by decades of engineering experience. Designed as durable steel backed acetal bearings, the WMX® range offers exceptional load capacity, excellent wear resistance, and dependable performance for today’s demanding industrial applications.
WMX® Acetal Lined Specifications

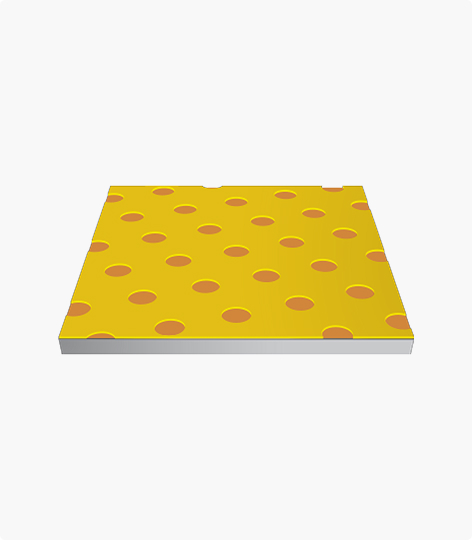

| Structure | S.A.E. 1010 steel backing strip with sintered bronze and Acetal Copolymer layers |
|---|---|
| Max PV (N/mm² x m/s) | 2.8 |
| Max Static load (N/mm²) | 140 |
| Max Dynamic load (N/mm²) | 70 |
| Max Sliding speed – With Grease (m/s) | 2.5 |
| Operating temperature (°C) | -40 to 110 |
| Thermal Conductivity (W/mk) | 2 |
| Coefficient of friction – With Grease | 0.05 to 0.15 |
| Recommended shaft hardness (HB) | 200 min |
Discover the WMX® Bearing Series
Select a product below to view dimensions, specifications and technical data.
Key Strengths of the WMX® Acetal Lined Bearings
Excellent Heat Dissipation
Acetal lining ensures efficient heat transfer, preventing overheating during intense operations.
Long-Lasting Performance
Precision-engineered materials provide exceptional wear resistance for prolonged service life.
Edge Loading Resistance
Specially designed to resist localized stress, ensuring stability under uneven loads.
Life-Long Lubrication
Embedded lubrication system offers continuous, maintenance-free operation.
Enhanced Load Capacity
Acetal lining supports higher load limits while maintaining optimal performance.
Designed for High-Speed Applications
Optimized to minimise friction and heat, providing smooth and dependable performance at high speeds.
Frequently Asked Questions
If the answer to your question is not listed below, please feel free to give us a call directly on +44 (0)1235 462500 or email us on sales@bowman.co.uk.

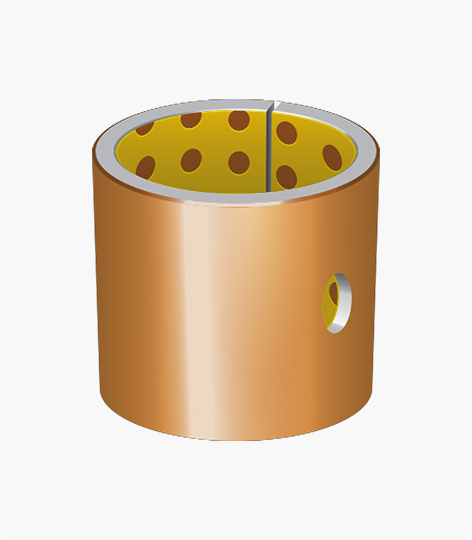

What are WMX® acetal plain bearings made of?
WMX® acetal lined bearings are manufactured as steel backed acetal bearings, combining a durable steel backing with a high-performance acetal copolymer lining. This construction provides excellent strength, low friction, and outstanding wear resistance. These acetal copolymer plain bearings are designed to deliver reliable performance in demanding industrial environments with extended re-lubrication intervals.
What is the maximum load capacity of WMX® Bearings?
WMX® Bearings are engineered to support high radial loads and perform reliably in demanding operating conditions. Their acetal lined wrapped bearings construction provides excellent load-carrying capability while maintaining dimensional stability and wear resistance. The exact load capacity depends on factors such as bearing size, shaft material, lubrication, operating speed, and application conditions. Bowman's engineering team can recommend the appropriate bearing for your specific requirements.
What applications are WMX® Bearings suitable for?
WMX® acetal lined bearings are ideal for acetal bearings rotary oscillating applications where high loads, low friction, and long service life are required. They are widely used in automotive systems, agricultural machinery, construction equipment, hydraulic cylinders, material handling equipment, machine-building, and industrial engineering applications. As low wear acetal bearings, they are particularly suitable where extended lubrication intervals are desirable.
Are there custom sizes available for WMX® Bearings?
Yes. Bowman offers wrapped acetal bearings in a comprehensive range of standard metric and imperial sizes, along with bespoke manufacturing for specialist applications. Custom dimensions, configurations, and application-specific solutions are available to ensure the bearing meets your exact performance and installation requirements.
How do WMX® Bearings reduce wear and friction?
WMX® acetal lined bearings reduce wear and friction through their advanced acetal copolymer bearing surface, which provides excellent sliding characteristics and low friction under lubricated operating conditions. The combination of a durable steel backing and premium polymer lining creates low wear acetal bearings that distribute loads efficiently, minimize surface wear, and extend equipment service life, making them an excellent choice for demanding rotary and oscillating applications.
